T-AKR (SL-7) - FSS

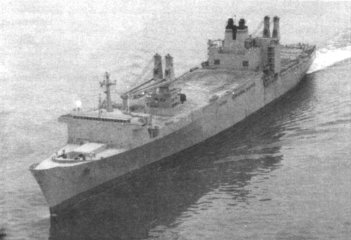

B/W photo of FSS from tourist phamphlet

FSS (Formerly known as SL-7)

There are eight Fast Sealift Ships, the pride of the Military Sealift Command's Strategic Sealift Force. These ships are almost as large as an aircraft carrier at 946 feet long, and are capable of sustained speeds in excess of 30 knots (exact speed is classified), rendering them especially suited to their primary mission: the rapid transport of military equipment (tanks, helicopters, wheeled vehicles and other heavy equipment) to support deployed troops worldwide. The eight ships were converted from what were formerly the largest and fastest container ships (Sealand's SL-7's) in the U.S. Flag commercial fleet. The cargo hold was redesigned into a series of decks connected by ramps so that vehicles can now be driven in and out of storage areas for rapid loading and unloading. Four cranes were installed, twin cranes amidships capable of lifting 35 tons apiece or 70 long tons together, and the after cranes are capable of lifting 50 tons apiece or 100 long tons together.

Ship Characteristics:

LOA 946ft 1½in (288.4m)
Beam 105ft 6 inches (32.2m)
Maximum Draft 36 ft 8 inches (11.2m)
Displacement, Light 29,692 L/T (30,168 M/T)
Displacement, Loaded 55,350 L/T (56,238 M/T)
Deadweight Tonnage 25,407 L/T (25,815 M/T)
Endurance 12,200 nm @ 27 kts
Maximum Speed 30+ kts
Typical Cruising Speed 25 kts
Crew Size 42
Originally Built 1972-3
Delivered to U.S. Navy 1984-5

Propulsion Characteristics:

Type Steam Turbine
Screws Twin Outboard Turning
Screw Diameter 22 ft 11½ in (7.0m)
Screw Pitch 27 ft 10 in (8.5m)
Number of Blades 5 (five)
Turbine H.P. 60,000 each (120,000 total)

More Photos:

USNS Capella in Pearl Harbor, HI '97

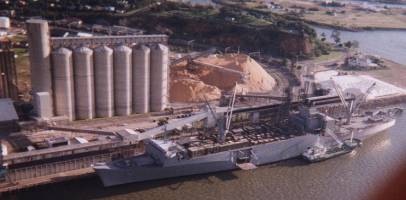

USNS Capella in Gladstone, Qld. '97

Links for more photos and information:

www.chinfo.navy.mil/navpalib/factfile/ships/ship-takr.html
www.nvr.navy.mil/stat_17.htm
www.msc.navy.mil/inventory/inventory.asp?var=FastSealiftship
www.history.navy.mil/photos/sh-usn/usnsh-a/akr287.htm
www.navsource.org/archives/09/540287.htm
www.nvr.navy.mil/nvrships/details/AKR287.htm
www.army.mil/cmh-pg/CHRONOS/aug90.htm (a Gulf War log of accomplishments)
www.mediacen.navy.mil/pubs/allhands/jan00/pg32c.htm List of All USNS Ships
www.ussalgolaka54.org/ships_pictures.htm USS Algol
